Features:
1. High-resolution (1920 × 1080), high brightness (700cd / m2), high contrast (3000: 1), wide viewing angle (178 degrees) high-definition (high-definition) LCD display panel, support 1080P Full HD digital video display.
2. The implementation of research and development of aluminum alloy box, built-in power supply, drive, interface, splicing processor and other integrated modules, tempered glass protection to avoid collision fragile liquid crystal glass, scientific cooling system design, built-in temperature control alarm module, Stable and safe.
3. Products are tofu block appearance structure, the box behind four fixed studs, twisted nuts can be fixed, simple and quick installation, to solve the Samsung DID LCD splicing unit semi-finished products difficult to install.
4. The first overall chassis design, anti-drop high-level transport packaging, complete packaging can reach the impact of falling below 1 meter; a variety of installation methods, high-end stent, beautifully installed cabinet with free. Can be wall mounted, embedded installation, etc .; install fool, no professional installation staff can also be very easy to install; stable operation, low maintenance costs;
5. Products provide VGA, HDMI, color components, mixed video, USB, RF TV signal interface, different from other manufacturers on-demand configuration of the signal interface limitations.
6. Using the first original "anti-aliasing flow processing technology", can be low-pixel images in the full HD display in the clear reproduction; de-interlacing technology to eliminate flicker; de-interleaving algorithm to eliminate "jagged"; dynamic interpolation compensation, 3D Dynamic digital noise reduction, 3D comb filter, 10-digit digital brightness and color enhancement, automatic skin color correction, 3D motion compensation, non-linear scaling and other international leading processing technology; image frame optional compensation or cover, full HD signal real-time processing The
7. Can achieve manual \ regular \ cruise \ alarm plan settings and kaleidoscope demonstration, intelligent temperature control and alarm, communication failure automatic detection and other functions, multi-signal split screen display, the whole screen display, any combination display.
8. from the international giants Samsung's new generation of panels; and the Chinese authorities to provide the test report, 3C certification, etc.!

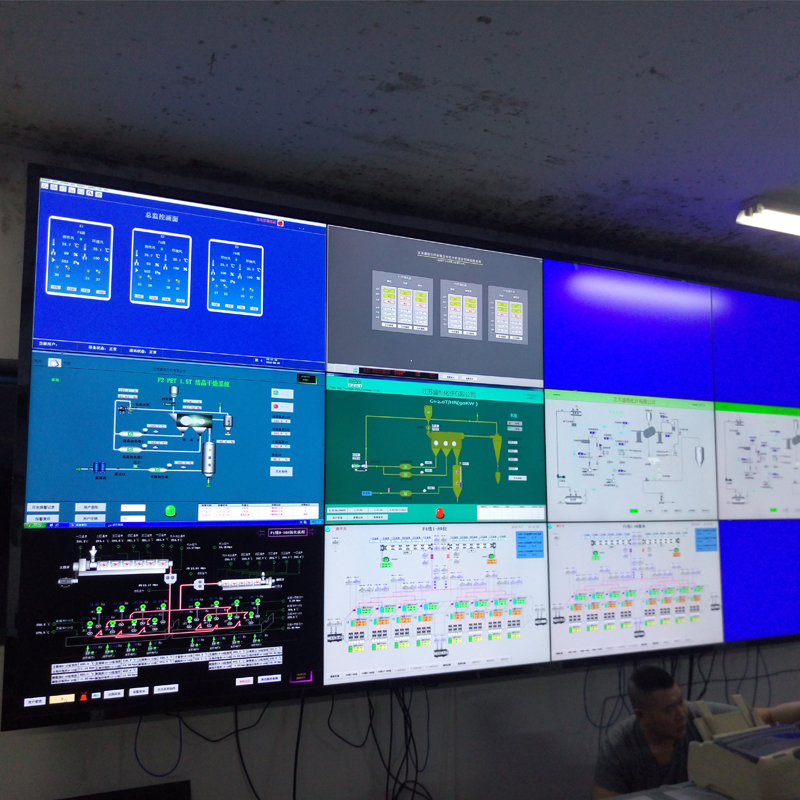

9. Widely used in security, command center, entertainment industry, corporate display, advertising media, exhibition center, factories and mines, electricity, water conservancy, education, organs and units, the military and other industries.
Technical Parameters:
| model | DID-555-SNB |
size（mm） | 1215.3(W)×686.1(H)×120.4(D) |
Screen Resolution | 1920×1080P |
Activate the display area | 1209.6(H)X680.4(V) |
Color saturation | 97% |
| brightness | 700cd/㎡ |
| Backlight | LED |
| Contrast | 3000：1 |
refresh rate | 120Hz |
| Show color | 10bit–1 billion color |
| Watch the perspective | 178° |
| Bilateral total patchwork | ≤5.3mm |
input interface | Color component，AVx2，VGA，HDMI，USB，DVI |
Signal format | NTSC、PAL、480I、576I、720I、720P、1080I、1080P |
Control interface | Infrared remote control and RS232 |
| Image processing technology | The first original "anti-aliasing stream processing technology", can make low-pixel images in the full HD display in the clear reproduction; to interlaced processing technology to eliminate flicker; de-interleaving algorithm to eliminate "jagged"; dynamic interpolation compensation, 3D dynamic digital drop Noise, 3D comb filter, 10 digital brightness and color enhancement, automatic skin color correction, 3D motion compensation, non-linear scaling and other international leading processing technology; image frame optional compensation or cover, full HD signal real-time processing. |
Display function | Manual \ regular \ cruise \ alarm plan settings and kaleidoscope demonstration, intelligent temperature control and alarm, communication failure automatic detection and other functions, multi-signal split screen display, full screen display, any combination display |
Roaming overlay | / |
| Stitching solution | Built-in digital processor, can be reprovisioned external matrix |
| Operating temperature | 0-50℃ |
Working humidity | 15-75% |
power supply | AC220V |
| Average power consumption | 300W |
| weight | Monolithic 38kg, wooden frame about 10kg |
| Installation method | Wall, embedded, floor cabinets, hoisting, TV cabinets and so on |
Recommended place to use | Security, command center, entertainment industry, corporate display, advertising media, convention and exhibition center, factories and mines, electricity, water conservancy, education, organs and units, military |
