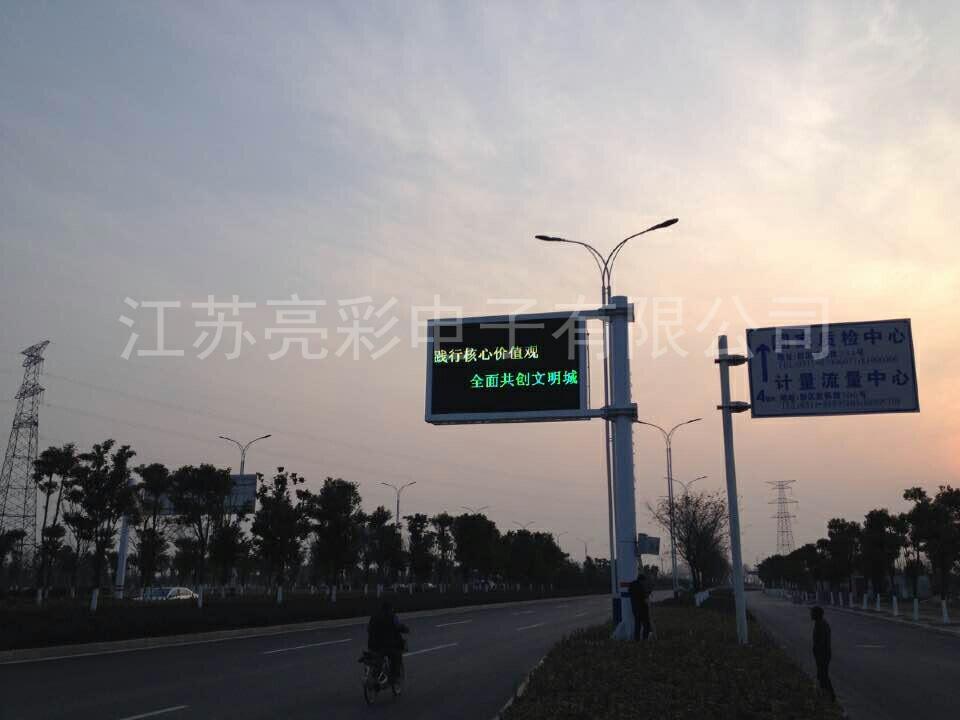

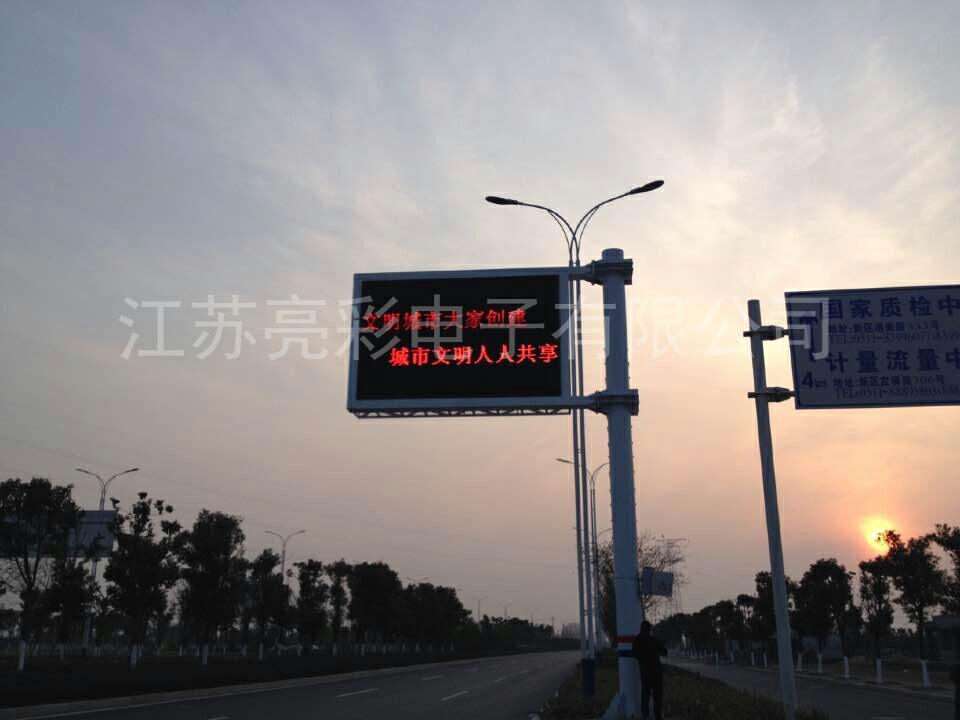

Traffic-induced screen means made of LED light for a while, used to display with the function of induced traffic, it is generally applied to highway, covey traffic-induced screen by screen, drive system, control system, communications equipment, power supply system and door frame, and other components of the box body, traffic-induced screen contains graphics inducing sign, is made up of ordinary road signs and variable message sign of the combination of multifunctional information display.
Road traffic-induced screen to render whole line contour graphic way to provide the road ahead to the driver, a signpost role; Road marking in the static graphics area enchase LED variable band, through the different colors of LED light-emitting, image identifying these sections in the open (green), block (red) or live traffic congestion state (orange), for the driver to judge and select the appropriate route, have the effect of induced traffic.
Traffic-induced screen display image intuitive and informative, relatively short time of visual cognition, driver's directions for not familiar with the road conditions and other significant advantages, suitable for urban road and highway main trunk road network density area.
Traffic-induced screen adaptation scope and exhibition center, stadiums, airports, docks, stations, streets, highways and other information display and advertising. According to display pixel size P10mm, P12mm, P14mm, P16mm, P20mm wait for a variety of specifications. Display types are divided into outdoor ChanHong, outdoor double colors (red and green), outdoor full-color.
Specifications Model | PH10 | PH16 |
Pixel pitch (mm)
| 10mm | 16mm |
Pixel composition
| 1R1G1B |
Pixel density
| 10000pixels/㎡ | 3906pixels/㎡ |
Module size (mm)
| 160*160 | 256*256 |
Module resolution
| 16*16 |
LED package
| SMD3528 |
Scanning method
| 1/2s |
Static
|
Screen brightness (cd / ㎡)
| ≥6500 | ≥6000 |
FCL average power
|
Custom
|
FCL maximum power
|
Use the environment
| outdoor
|
Module splice (block / face)
|
Custom
|
FCL resolution (dots)
|
Overall size (mm)
|
The overall area
|
Overall weight (kg)
|
Refresh rate
| 600HZ---5000HZ （Depending on the choice of driver chip different and different values）
|
Grayscale
| 4096---65536 （Depending on the choice of driver chip different and different values）
|
AC input voltage
| 110-240V ±10% |
Power input frequency
| 50/60HZ |
Brightness adjustment level
|
100 automatic or manual adjustment
|
Color temperature
| 3200K---9500K adjustment |
Operating temperature range
| —20℃～60℃ |
Working humidity range
| 10%～90% |
Normal service life
| ≥100000 hours |
Mean time between failures
| ≥5000 hours |
Miscellaneous rate
| <0.0001 |
1. High brightness: outdoor full color with high brightness LED, under the sun light is still clearly visible over a long distance.
2. High uniformity: display color uniformity of ultra-high, display more exquisite.
3. Good flatness: module control the installation surface roughness requirement of plus or minus 0.1 mm.
4. The effect is good, a nonlinear correction technology, image more clear, administrative levels feeling stronger.
5. A variety of content: display variety, and support a variety of formats, support for more than nine foreign access to the signal, which can realize the live.
6. Reliability: use a variety of scanning technology and modular design technology, higher reliability and stability.
7. Less power failure: outdoor full color screen body greatly increased the use efficiency of switch power supply, reducing power failure.
8. Easy to operate: the general video player software, make the system operation is very convenient; With asynchronous compatible, even if the control computer malfunction, also can work normally.
9. Circuit board stability: wave soldering technology on PCB, with green oil oxygen insulation layer, prevent the lines of moisture, oxidation, improve the service life.
10. Anti-corrosion paint: protection of circuit board and related equipment from the erosion of the; Has good resistance to high and low temperature performance; It into a layer of transparent protective film, after curing have superior insulation, moistureproof, prevent leakage, shockproof, dustproof, and corrosion resistance, prevent ageing, corona resistance and other properties.
