Leyard OLED transparent screen series has two models: splicing and touch control. OLED transparent display and touch screen are ideal choices for various applications, such as retail advertising, company display, museum display, education or corporate applications and various architectural design applications.

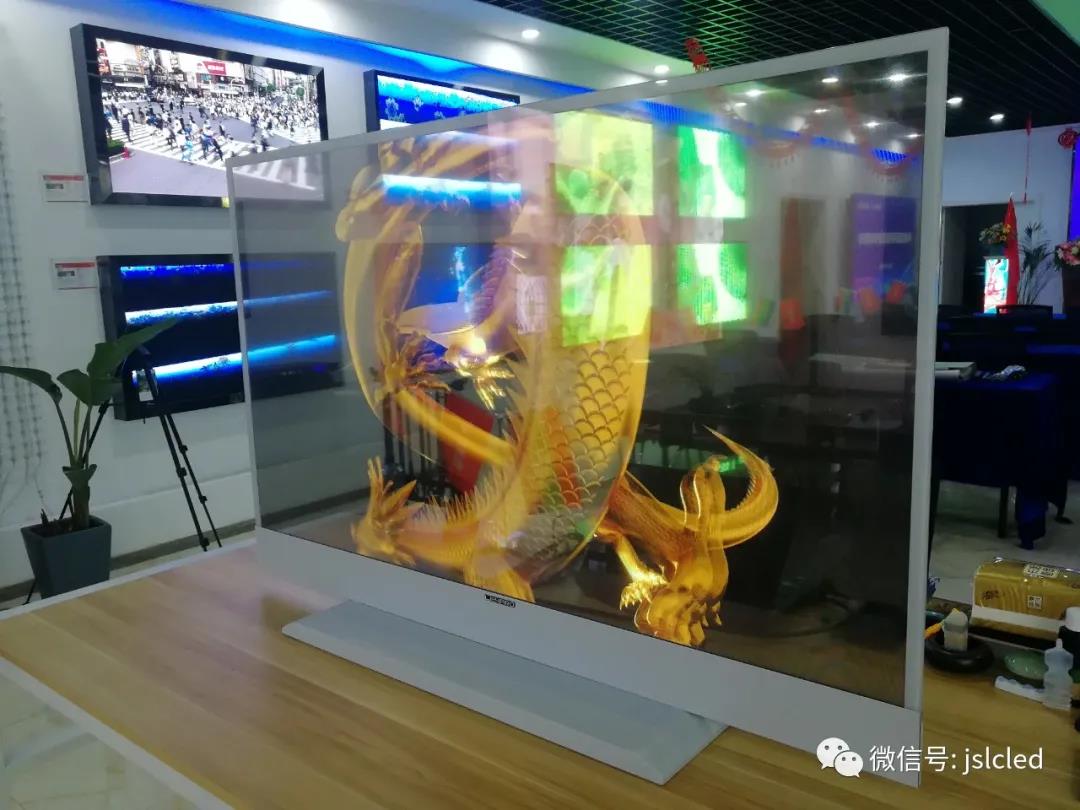

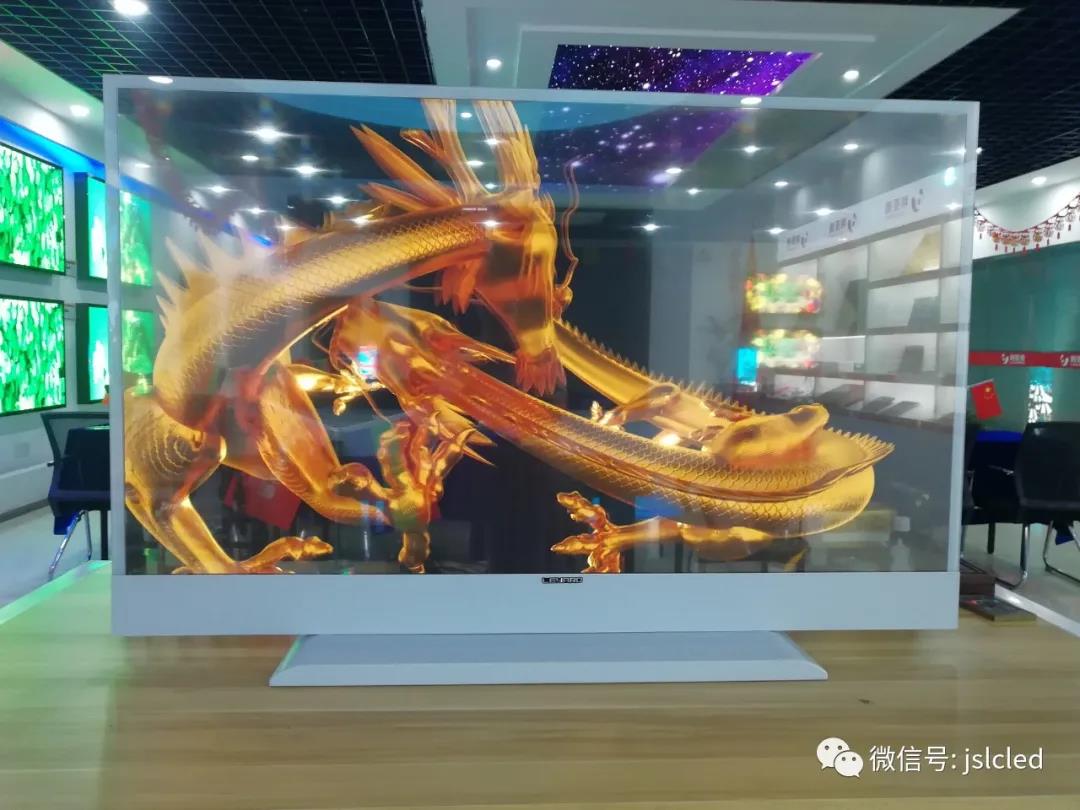

Lo55 is a transparent OLED display unit suitable for splicing purposes. The display unit uses a more energy-saving and environmentally friendly OLED backlight and can reach 40% transparency. The image processing module with built-in splicing function of Lo55 can be used for independent display, and it can also support 2-layer splicing, and it can be spliced into a large-screen splicing display system flexibly and conveniently.

Lo55?T is slim and beautiful, realizing perfect interactive operation. The electronic area of the fuselage is completely covered by metal material, and the fanless design ensures "zero" noise while reducing electromagnetic radiation to the greatest extent.

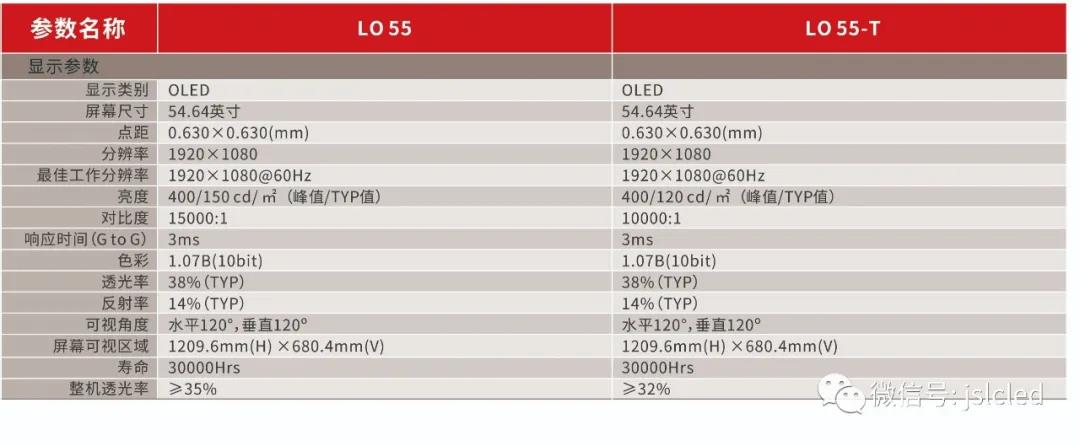

Product parameter

       ? OLED ultra-high-definition resolution transparent display, ultra-high contrast;

       ?Advanced full-laminated production process, the front and rear of the OLED screen are laminated with strengthened glass, the thinnest glass is 1.1mm;

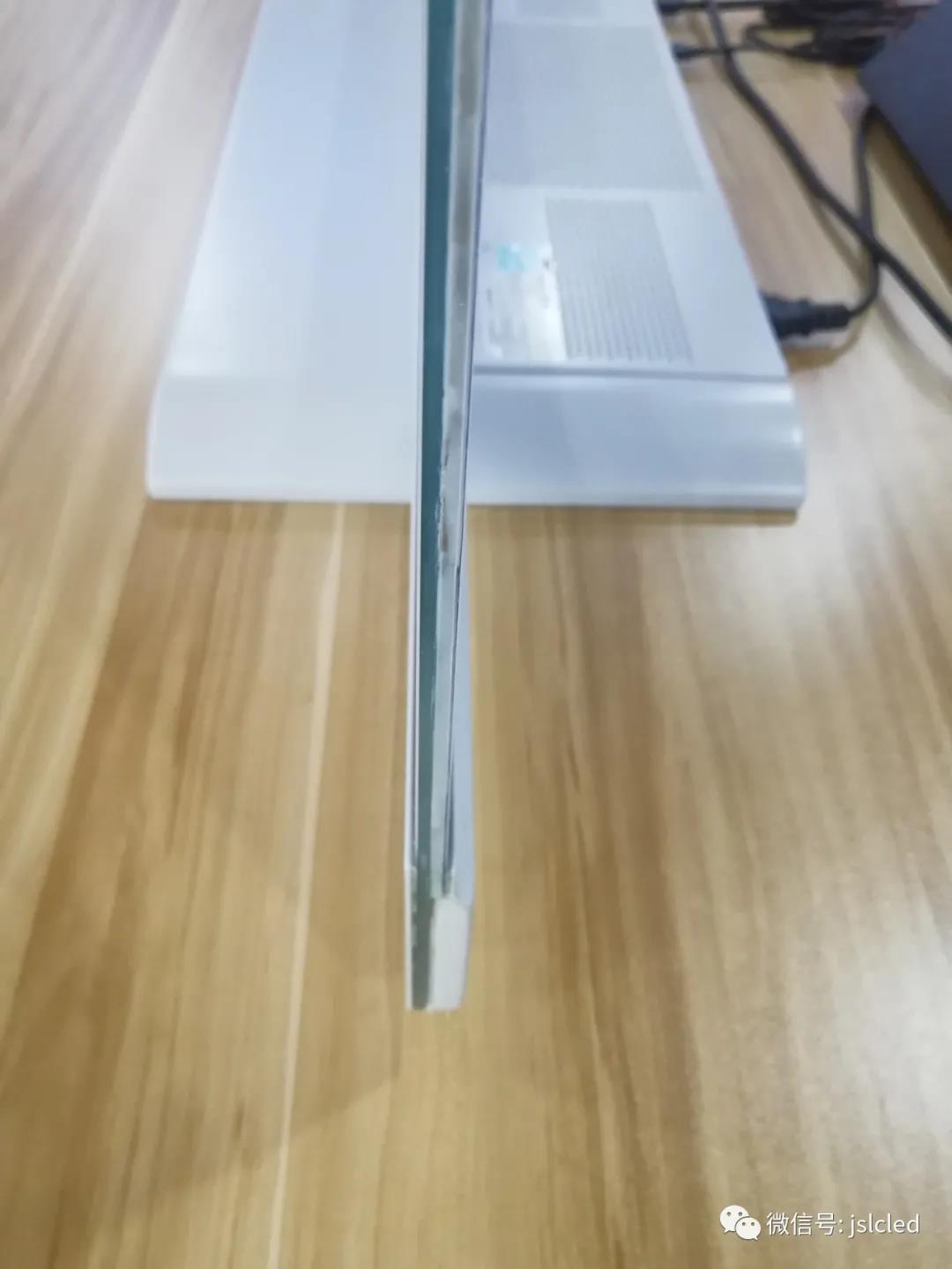

       ? The overall thickness of Lo55 is ≤5.8mm, and the overall thickness of Lo55?T is ≤7.4mm;

       ? Lo55 supports internal splicing, up to 2x15 (Ultra HD signal supports up to 2x10 splicing) internal splicing;

       ? The Lo55 main chip supports multi-channel and multi-picture display, supports PIP (Picture-in-Picture), PBP (dual picture) functions;

       ? Lo55 supports single screen rotation of 90 degrees, 180 degrees, and 270 degrees;

       ? Lo55 display supports MHL function, which can realize mobile phone & tablet terminal control

       ? The Lo55 structure is compatible with desktop/wall mounting, and supports the desktop and ceiling to be spliced up and down;

       ? Lo55 can customize different shapes of bases according to different application scenarios;

       ?Lo55?T supports 10-point capacitive touch, and the main chip and power supply support screen anti-burn protection.
